CBA ItemBuilder Workshop: Session 09

Ulf Kroehne

Paris, 2022/11/07 - 2022/11/08

Session 09: Outlook

Overview Session 09

Summary Day 1

• Potential (Known) Issues
  A dozen useful or useless tips…

Time for Questions

• Questions collected during the workshop…

Outlook Day 2

• Finite-State Machines
• Evidence Identification

Potential Questions / Issues (1)

How to test Cross-Browser-Compatibility?

Basic cross-browser testing can be performed using browsers that can be installed on Windows computers by copying the preview link.

What’s tested:

• Configuration of item, layout, defined behavior (best-case).

What’s not tested:

• Potential issues caused by the integration of items into delivery software.

Alternatives

• The PCI-Converter¹ allows to preview the items as website. The static github pages can be tested on any device/browser.

1. URL: https://github.com/DIPFtba/fastib2pci

Potential Questions / Issues (2)

How to deal with different CBA ItemBuilder versions?

New versions of the CBA ItemBuilder are created in such a way that they can open items created in the previous version.

Migration

• It should be possible to open an old item with a new version.
• Content is automatically migrated to the structure required for the newer version. This process can not be reverted.

Never try to open an item created with a newer version with the CBA ItemBuilder.

Potential Questions / Issues (3)

How to identify the version from a CBA ItemBuilder project file?

Use the most recent version of the CBA ItemBuilder to avoid version issues.

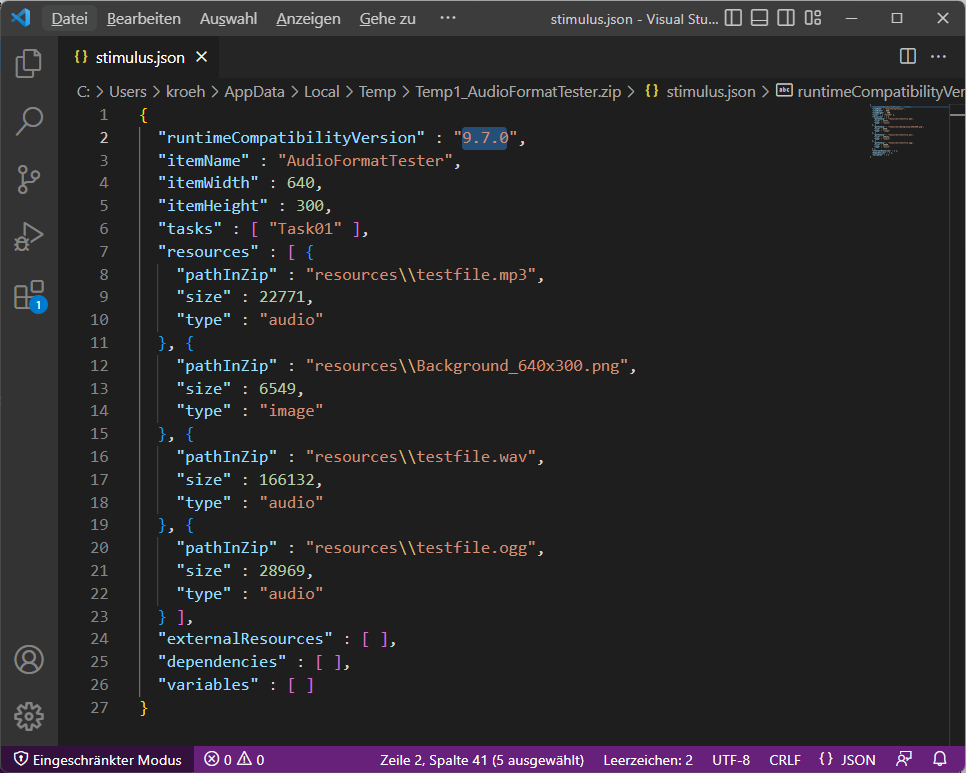

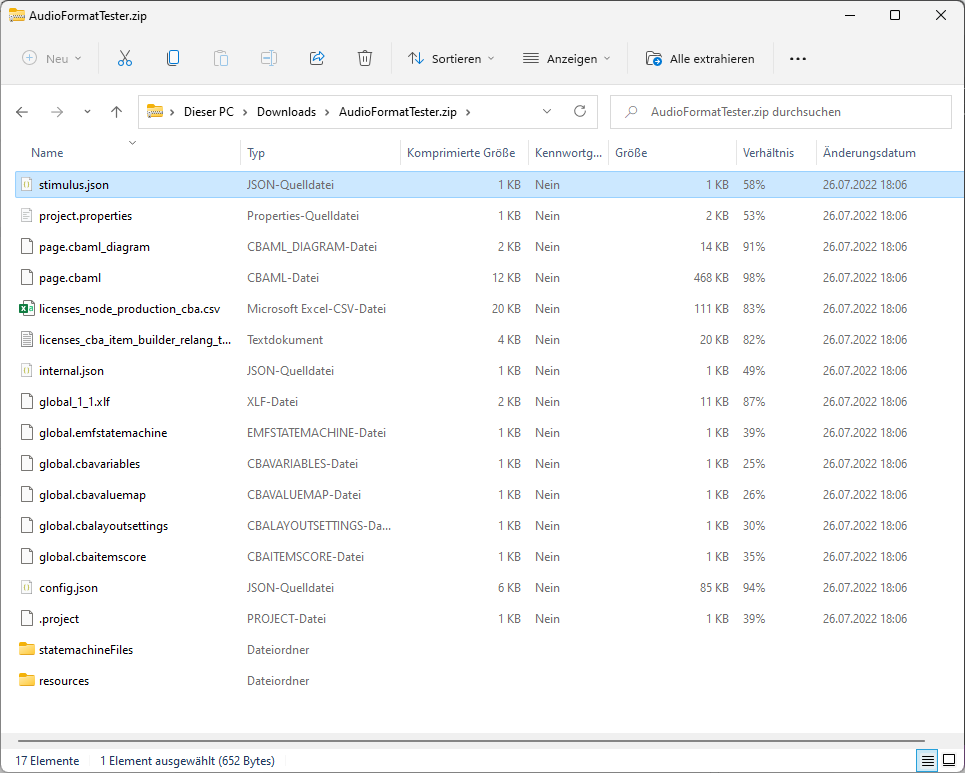

• Open the project file as zip archive and explore the file stimulus.json:

Potential Questions / Issues (4)

How to layout pages for production?

The Page Editor displays the position of components in such a way that editing is possible¹. The exact appearance can be checked in the Renderer view. Relevant is, how Pages are displayed in the Preview.

Tips regarding item layout:

• Preview items regularly (since the preview not only shows the final layout but also triggers consistency checks).
• Avoid overlapping components (e.g., HTMLTextFields overlapping with Button-components etc.).
• Don’t use Rectangles over interactive components since Rectangles absorb user interactions.
• Use Auto-Layout Panels when possible to avoid (stupid) positioning of components with X/Y-coordinates.

1. Not WYSIWYG = What you see is what you get.

Potential Questions / Issues (5)

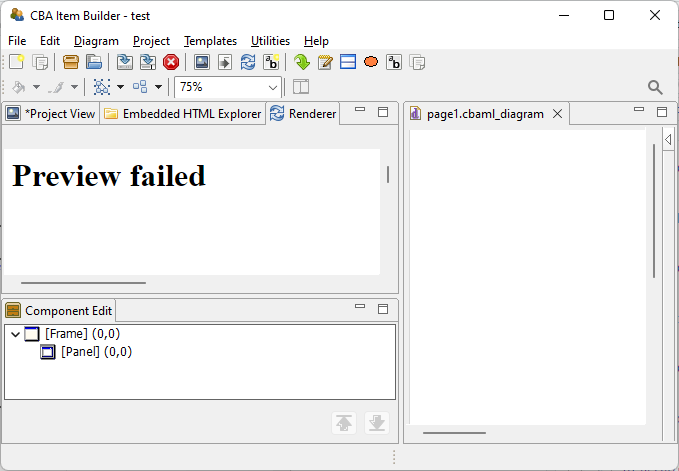

Problem Description: The Renderer-view is not working properly.

Detection: Render shows Preview failed?

Work-Around:

• Close all Page Editors, open the Renderer-view and open a single page in the Page Editor.

Note: The Renderer is not always correct (even if is not showing Preview failed).

The Renderer-view is based on an older version of the Chromium browser, that does not show the properites Gap Column and Gab Row of Auto-Layout-Panels properly.¹ As a work-around, check item layout in the final Preview.

1. It’s a known issue to update the Chromium-browser, but due to dependencies this is still open.

Potential Questions / Issues (6)

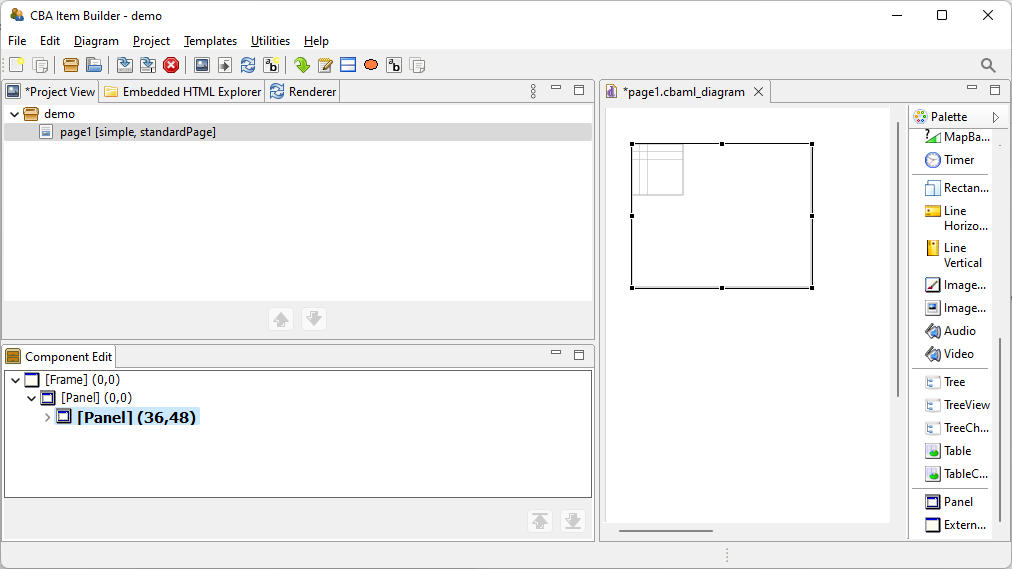

Problem Description: Auto-Layout Panels are note updated?

Background:

• The Renderer-view is required update Auto-Layout Panels (but the Renderer is working when Preview Failed occurs).

Work-around:

• Close the Page Editor, open the Renderer and open the page again in the Page Editor.

• Open the Set Auto Layout dialog and close it (to update the layout definition).

Potential Questions / Issues (7)

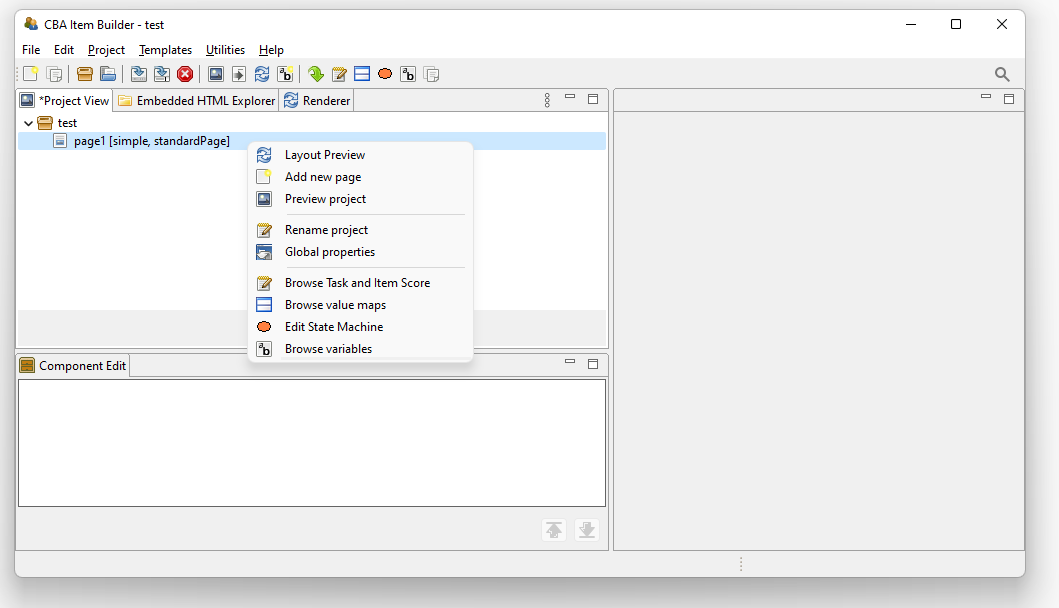

Problem Description: Context menu for in the Project View is not working

Background:

• Menu on the Project Name shows the menu for Pages, or
• Menu on Page Names shows the menu for Projects`?
• …

Work-around:

• Close the CBA ItemBuilder and restart.

Potential Questions / Issues (8)

If you can’t find the Windows in the CBA ItemBuilder user-interface….

• Windows with the CBA ItemBuilder user-interface can be minimized.
• Search for the the small icons on the left or right to open or dock them again.

• To Reset the CBA ItemBuilder’s default go to the Program Folder of the CBA ItemBuilder and delete the sub-directory "workspace\".

Potential Questions / Issues (9)

If you can’t use the clipboard as expected…

The clipboard needs to make sure the nesting of components remains valid. Components are pasted X+10 and Y+10 (i.e., moved 10 pixels down & right).

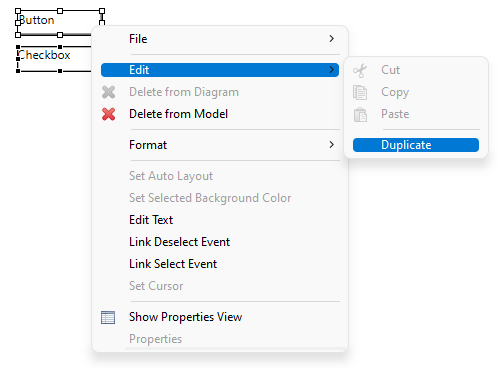

• A selection of components can be duplicated (with the same page):

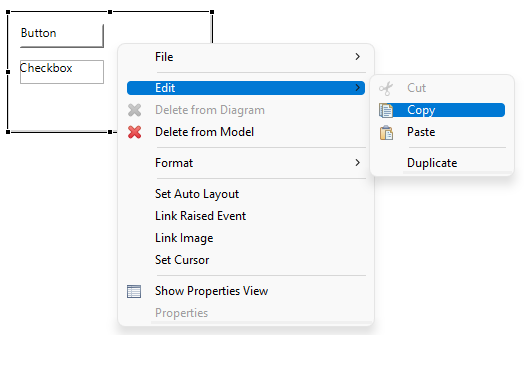

• A single component (e.g., Panels with nested components if required) can be copied using the clipboard:

Potential Questions / Issues (10)

How to use the Page Editor efficiently?

Before using the CBA ItemBuilder it might be worse to read the description of Visual Editing to work efficiently.

General tips for working with the Page Editor:

• You can select multiple elements using Strg/Ctrl + Click.
• You can also de-select elements by holding Strg/Ctrl + Click.
• You can select elements using the lasso.
• You can zoom in / zoom out the Page Editor.
• How elements can be moved depends on the Snap to Grid setting of the page. But Snap to Grid can be deactivated if the Alt-key is pressed while moving elements in the Page Editor.
• Use Strg/Ctrl + Z (Undo) in case you moved components accidentally.

Potential Questions / Issues (11)

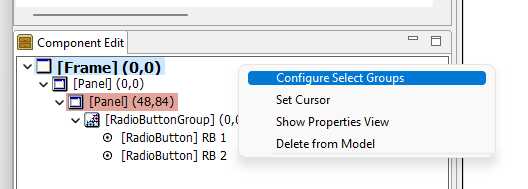

If components are perfectly nested, the outer components can only be selected via the Component Edit view. For instance, the dialog Configure Select Groups can only be opened using the context-menu of the Frame component.

Specific tips for working with the Component Edit:

• Expand the containers to find all components. The numbers behind the [component type] in the Component Edit refer to (X ,Y)-coordinates.
• Use the context-menu entry Delete from Model in the Component Edit to delete components (the Del-key will not work).

Potential Questions / Issues (12)

Editing HTMLTextfields / Textfields seems inconsistent?

Only one editor for components of type TextField and HTMLTextField can be open at a time!

Tips specifically for HTMLTextfield and Textfield

• Don’t close the editor with the small x (in the Tab title), if you want to save the changes. Use the buttons Save and Close instead.
• Use the Toggle Background button in HTMLTextFields if white text needs to be edited (otherwise, the text appears invisible).
• The preview of text in the Page Editor is not trustworthy. It’s a screenshot taken from the editor, that often fails to represent the actual text. The image is not updated, when the size of the component is changed. Workaround? Ignore the ugly images!
• The TextField editor sometimes adds White spaces, (invalidating MathJax-syntax). Workaround? Remove white spaces when they appear.

Questions During the Workshop

Outlook Day 2 – Finite-State Machines

Besides variables (and conditional links), the CBA ItemBuilder provides a powerful logic layer with so-called Finite-State Machines (= UML¹ statechart / UML State Machines).

Summary

• The behavior (and layout) of items can be described with multiple so-called States of a Finite-State Machine (FSM).
• Each FSM is in (exactly) one State at a time, but multiple FSMs are possible.
• User-interactions (with components) or Timers can be linked to Events.
• Events can trigger State-changes (so-called Transitions) and Transitions can depend on conditions (Guards, for instance, values of Variables).
• Operators can be executed in Transitions (or by entry-/exit- of States).
• States can be assigned to Pages (a specific Page is shown at State-entry).

1. UML= Unified Modeling Language

Outlook Day 2 – Link Events

Events Triggered by User-Interactions or Timers

• Components can be linked to Events¹
• Semantic of events defined by components

Events can be processed in Finite-State Machine to

• change current State
• call Operators (and modify the item)

1. These Events are also called FSM-events because the events that are linked to components are defined and processed in the CBA ItemBuilder’s Finite-State Machine.

Outlook Day 2 – One Possible FSM-Example

Drag-and-Drop & Click-Responses

Why?

• Drag-and-drop not for everyone the expected (natural) user-interaction.
• Students could try to click the appropriate image.

What?

• Click-events used to switch images (in addition to drag-and drop).
• Reset button (set un-frozen) when answer selected.

How?

• User-Interactions linked to FSM-Events (click, drag and drop).
• FSM-Events processed in one state in the Finite-State Machine-Layer.

Outlook Day 2 – Another FSM-Example

(Theoretical) Illustration

What’s the Power of FSMs?

• FSMs have a graphical representation.
• FSMs contextualize events (i.e., same action can have different meaning depending on the Current State)

• Finite-State Machines are powerful, but no a specific Programming Language (i.e., Runtime code is generated, but the generator can change over time).

• First CBA ItemBuilder versions generated Flash-code, 2nd generation used HTML4 (server side Java), and the current Runtime is based on React (meaning HTML5/JavaScript). However, the Finite-State Machines were identical.

Outlook Day 2 – Evidence Identification

The CBA ItemBuilder distinguishes between two forms of data: Scoring information (i.e. responses for a result record) and log data (i.e. raw log events).

Scoring (called ItemScore)

• Tasks can contain one or multiple items. Each item can provided one or multiple result variables (e.g., a scored response and the raw response).
• Scoring allows to define multiple variables (called classes), and each class can either provide discrete values (called hits) or a text (called result-text).

Log-Data (called Traces)

• All interactions are automatically logged and streamed as log events.
• Additional user-defined log events (e.g., named actions) can be added using a FSM-operator.

Outlook Day 2 – Openess

The CBA ItemBuilder is an open tool that A) can use existing HTML5/JavaScript content and B) CBA ItemBuilder generated items can be embedded into other web-based environments.

Example for A) Use of H5P¹-content:

Example for B)

• Github-workflow to create TAO-PCI components

1. This example is based on the h5p-standalone.

End of Session 09: Outlook

Thank you for your attention.
