07 – Variables, Value Maps & Drag-and-Drop

Overview

Definition of Variables

Types
Debugging

Display of Variables

Variable Value Displays
Value Maps

Use of Variables

Drag and Drop

Variables-View

Variables are configured in the Variables-view (main menu Project > Browse Variables or toolbar icon).

Variables are defined for the Project File (i.e., available for all Tasks within a Project)
Main options of the Variables-view: Add Variables, Edit, and Delete

Named Values:

Assign names (used in syntax) to values
Optional, but useful to avoid magic numbers

Typed Variables

Variables are part of the logic layer of the CBA ItemBuilder and most often used together with Conditional Links or Finite-State Machines.

Variables are defined by a unique Name, a Type (INTEGER, NUMBER, STRING or BOOLEAN) and a default Value.

INTEGER variables (i.e., numbers without decimal places) are typically used.
Valid variable names (like page names and user-defined ids) use only letters, digits, and underscore, and the first character must not be a digit.

Variables – Overview

Variables and (Map-Based) Variable Displays are used for many purposes, for instance, to implement Drag-and-Drop response formats.

What can change values of variables?

Input components
Drag-and-drop operations
Task Initialization
Operators
- in Finite-State Machine Rules
- in Conditional Links

How are values of variables used?

Display information (using Variable Displays and optional Maps)
Scoring of responses
Conditions
- in Finite-State Machine Rules
- ~~in Conditional Links~~¹

Variable Value Displays

Layout Options

Link Variable

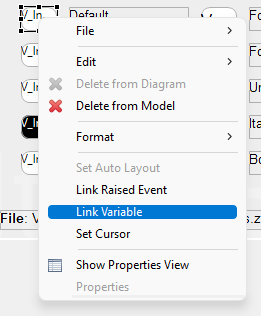

VariableValueDisplays are linked to a variable using Context Menu
Formatted using the Properties-view, including position (X/Y) and size (Width/Height)

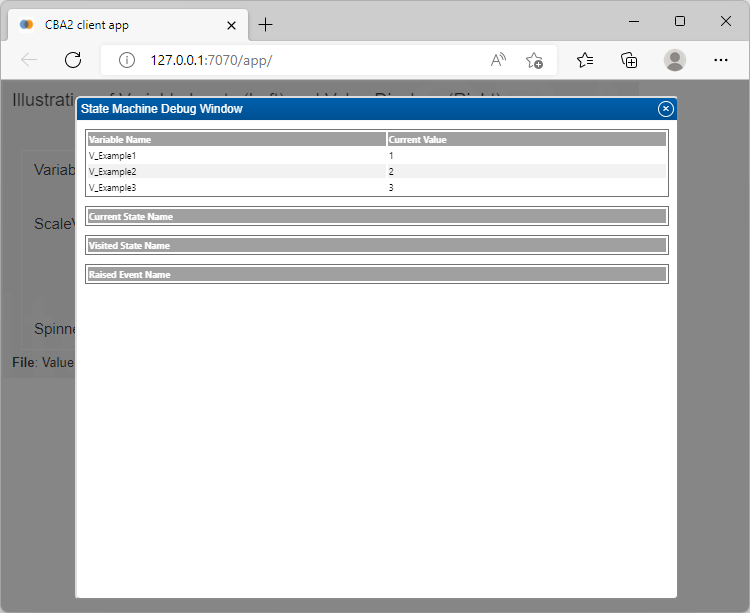

State Machine Debug Window

For item development, the Preview provides the State Machine Debug Window that lists (beyond other things) the current value of variables.

During Preview:

Value of variables can be debugged in the Preview
Strg/Ctrl + M is the (default) hotkey for the State-Machine Debugger

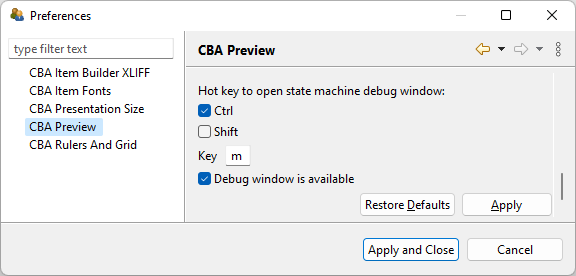

Settings (main menu Utilities > Open preferences)

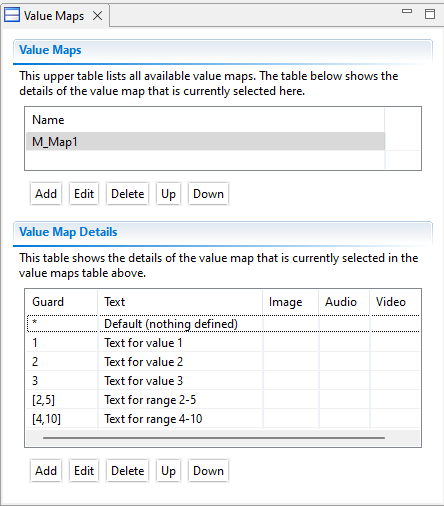

Value Maps-View

Value Maps are used to translate numeric values (or ranges) into Text, Images, Video and/or Audio.

Multiple Maps can be defined (each require a unique Name).

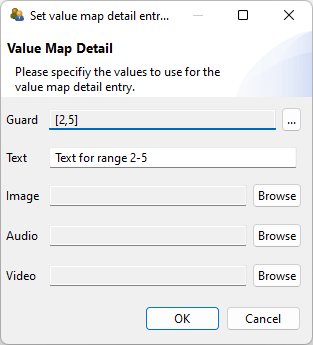

Each entry requires a Guard (the value, range or default *) and can use Texts or refer to resources (Images, Audio, Video from the Resource Browser).

Map-Based Variable Displays

Layout Options for Value Display Type TEXT

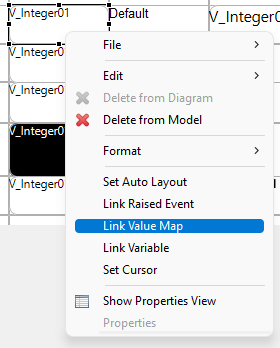

Link Value Map (& Variable)

MapBasedVariableDisplays are similar to VariableValueDisplays, but are linked to a Variable and to a Map.
Entries in the Map are ordered (i.e., the first guard is used, * is used last).

Map-Based Variable Displays: Display Types

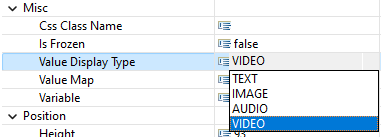

By default, MapBasedVariableDisplays show the Text of the linked Value Map. If Images, Audio or Video should be used, change the property Value Display Type in the Properties-view.

Configuration in the Properties-View:

MapBasedVariableDisplays can be Linked to Events and work as interactive buttons or to display text information or, images.
MapBasedVariableDisplays can also be used as multimedia-player.

Drag-and-Drop – Two Concepts

The CBA ItemBuilder supports two drag-and-drop concepts, but fixed drag-and-drop is used more often.

Free Drag-and-Drop: Position of elements changes
Fixed Drag-and-Drop: Positions remain, only elements change

Example:

The dices on the left side can be moved (with the Panel).
Drag-and-drop between left and right is possible.

Drag-and-Drop – Real-Life Examples (1)

Drag-and-Drop – Real-Life Examples (2)

Drag-and-Drop – Variables and Maps

Simple Illustration

Each time a successful drag-and-drop operation is completed, the variable change values.
Instead of numeric values, the mapped images are shown.

Variables

position one (V_1)
position two (V_2)
position three (V_3)

Values Map

Value	Image
2
3
4

Drag-and-Drop – Modes

The property Drop Mode of MapBasedVariableDisplays defines the drag-and-drop behavior.

All 3 different modes are illustrated in this item.
Explore how values of variables are changed after drag-and-drop operations!

DROP_SWITCH: The source variable and the target variable switch values
DROP_MOVE: The value of the source variable is moved to the target variable (and the source variable becomes zero)
DROP_COPY: The value of the source variable is copied to the target variable (but the source variable keeps the value)

Drag-and-Drop – How-to?

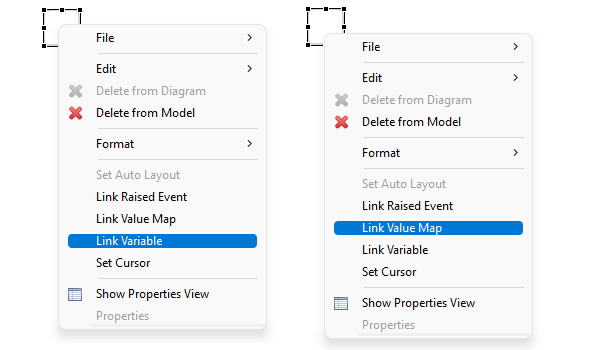

Defining a first MapBasedVariableDisplay:

Add the components to the page.
Link variable and map (Link Variable / Value Map).
Configure Value Display Type (if not TEXT).

Configure if a drag-and-drop operation can…

start from the component (Drag Source: true)
end at the component (Drop Target: true)

Configure how variable values are changed:

Drop mode (DROP_COPY, DROP_MOVE or DROP_SWITCH)

Duplicate the configured component.

Multiple Drag-and-Drop Interactions per Page

How to Create Groups?

Problem

By default, drag-and-drop is possible across all components of type MapBasedVariableDisplays.
This is not always what’s needed.

Solution:

Option A: Unique values and different maps (see example above)
Option B: Use drop events to check for valid operations (see session 11)

Summary

Important:

MapBasedVariableDisplays are introduced here for drag-and-droop, but the components can also used as buttons or to display information.

Helpful to remember:

The Variables-view can be opened using the menu Project > Browse Variables.
The Variables-view can be opened using the menu Project > Browse Value Maps.
How the value of variables is changed after drag-and drop is defined by the Drop Mode.
The State Machine Debug Window shows value of all variables (but also additional information required to check Finite-State Machines).

Additional tips:

Don’t forget to define the Value Display Type.
