CBA ItemBuilder Workshop: Session 04

Ulf Kroehne

Paris, 2022/11/07 - 2022/11/08

Session 04: Hands on ‘More Items’

Overview Session 04

Preparation

• Structure of Palette and Components
• Navigation Commands

Hands-on 02 (A-C)

• More Items (Single Choice, Multiple Choice, Text)

Regular Expressions

• Why and How

Hands-on 02 (D-E)

• More Items (Images and Video)

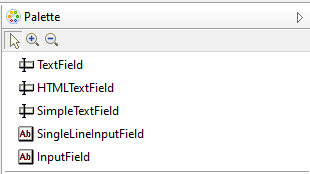

Components (Text)

• As shown in Session 01, components are used to design pages.
• Most components can be added (i.e., nested in) to Panels

The CBA ItemBuilder’s Palette is context sensitive (i.e., only components that can be added to the currently selected element in the Page Editor are shown. )

• Palette follows a structure:

  • Components to display text are either TextField, HTMLTextField or SimpleTextField

• Components to collect text responses are either SingleLineInputField or InputField

Components (Click Responses)

The CBA ItemBuilder allows to collect Click Responses in many ways.

• Links between pages can be triggered using…

  • the specific link component

  • the generic button component

• Click-responses are typically using …

  • either check boxes for Multiple-Choice

  • or radio buttons for Single-Choice

• Two concepts exist to group radio buttons (either using radio button groups or using so-called frame select groups)

• Less often used: ComboBox, List, Menu within MenuBar or ImageMaps.

Examples for Buttons

• Standard Buttons vs. Image Buttons

Important Properties

• Is Toggle: Button has a toggle state
• Is Frozen: Button is frozen or not frozen (default)

Since Buttons and Links share the concept of Visitied Link Color, using text color of Buttons requires to define Use Default Link Color: false and Use Same Color For Visited Reference: true in the Properties-view.

Examples for Comboboxes, Lists and Menus

Nesting

• ComboBox contains ComboboxItem components
• ListX contains ListItem components
• MenBar contains MenuItem components

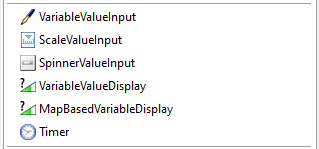

Components (Variables)

• The CBA ItemBuilder supports Variables and specific components exist for Variables.

  • Components to link input to variable values (*ValueInput)
  • Components to display values of variables (*Displays and Timer)

Binding

• Components change the value of Variables
• Changing the value of variables changes the components

Examples for Map-based Displays and Timers

• Example for a Scale- ValueInput and a MapBasedVariable- Display

• Example for two components of type Timer visualizing the remaining time of an Timed Finite-State Machine Event.

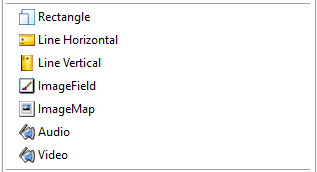

Components (Layout & Multimedia)

Graphical design should be done using Images.

• Only basic support is provided for layout / design

  • Components to add rectangles (Rectangle) should rarely be used (use Border Width to add border to components, including Panels)
  • Components to draw lines (Line Horizontal / Vertical)
  • Components to add Images (ImageField), Audio and Video
  • Components to collect responses in images (ImageMap)

Components (Layout & Multimedia)

Graphical design should be done using Images.

• Only basic support is provided for layout / design

  • Components to add rectangles (Rectangle) should rarely be used (use Border Width to add border to components, including Panels)
  • Components to draw lines (Line Horizontal / Vertical)
  • Components to add Images (ImageField), Audio and Video
  • Components to collect responses in images (ImageMap)

Examples for ImageMaps

Images can be used as background for click-sensitive ImageMaps.

• Simple shapes and polygon shapes
• (see also example from session 01)

Notice:

• Creating the click-sensitive areas with the ImageMap Editor of the CBA ItemBuilder is possible, but requires some patience (read here before getting frustated).

Examples for Lines and Transparent Images

• Vertical and horizontal Lines, Rectangles and Panels with different values of the property Border Width

• File formats for images with support for transparency (*.gif and *.png) and without (*.bmp and *.jpeg)

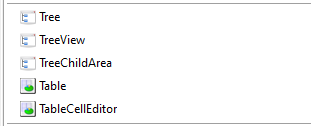

Components (Tables & Trees)

• Trees (Tree, TreeView and TreeChildArea) for specific purposes (e.g., folder structure as part of ICT Literacy assessment)

• Tables as response format (Table and TableCellEditor)

Types

• Standard (used to layout TextFields)
• Spreadsheet (with row and column header and TableCellEditor)

• Tables are a rather old approach, not used too often.
• Auto-Layout-Panels are a rather new approach to layout components in flexible table layouts.

Components (Panels and ExternalPageFrame)

Last but not least

• Panels are very useful to
  combine elements

  • … required to add a border, a background color or a background image,

  • … useful to move components together

  • … to copy multiple components using the clipboard

  • Panels can be nested into Panels (i.e., nesting)

  • Panels support to create table layouts (Auto-Layout Panels)

• ExternalPageFrames provide the possibility to include (any) HTML/JavaScript to compensate for missing features of the CBA ItemBuilder

Commands

• CBA ItemBuilder Tasks can contain single or multiple items, placed either on a single page or distributed across pages.
• Within the Task pages can be changed (using links or a Finite-State Machine).
• To end the Task a Navigation-Command is required:
  • NEXT_TASK: Go to the next task or end this part of the assessment
  • PREVIOUS_TASK: Go to the previous task (if supported)
  • CANCEL_TASK: End or interrupt to assessment (if supported)

Start: For each CBA ItemBuilder project at least one Task must be defined that serves as the entry-point.

End: To end the Task a Navigation-Command (e.g., NEXT_TASK) is required. The Task will only end, if the Navigation-Command is triggered (either by a user-interaction or from the Finite-State Machine, for instance using a Timer).

• Navigation-Commands are either linked to Buttons (or triggered from a Finite-State Machine operator)

Hands-on 02-A: Create Single-Choice Item

Find the instruction online as Hands-on 02-A.

Hands-on 02-B: Create Multiple-Choice Item

Find the instruction online as Hands-on 02-B.

Hands-on 02-C: Create Text-Entry Item

Find the instruction online as Hands-on 02-C.

Regular Expressions

Regular expressions are a common concept used in several places in the CBA ItemBuilder.

• Section 6.1 describes the Regular Expressions in detail.

Regular Expressions – Use Cases (1)

• Input restriction (i.e. validation pattern)

• Input restriction (i.e. validation pattern) with feedback (requires Finite-State Machine)

Regular Expressions – Use Cases (2)

• Text scoring (i.e., instant evaluation of text responses)

Notes:

• Press Ctrl+ / Strg+ S to open the Scoring Debug Window.

• See here for a table with Regular Expression Symbols.

• Regular expressions can also used for Conditional Links, as we see later.

Hands-on 02-D: Create a Closing Page

Find the instruction online as Hands-on 02-D.

Hands-on 02-E: Create an Instruction Page

Find the instruction online as Hands-on 02-E.

End of Session 04: Hands-on ‘More Item’

Multimedia resources are part of the items:

• Resources are part of the Project Files. Resources can be manged using the Resource Browser.

Supported / suggested file formats (web browser support required):

• Audio: *.mp3 / *.ogg ; Video: *.mp4 / *.ogv / *.webm; Images: *.gif / *.png / *.jpg / *.tiff

Helpful to remember:

• Task and Navigation-Command required for each CBA ItemBuilder project.
• Use Panels to group components and to add borders.

Additional tips:

• Avoid (un-proportional) scaling of images / videos.
• Reduce file size of multimedia components (in particular for web-based deployments).
• Use web-fonts (i.e., fonts that will be available in the browser).¹

• Let’s continue after a break in session 05 with the interesting stuff!

• What else have you learned?

1. Delivery of fonts as part of the resources is not yet available but under development.
